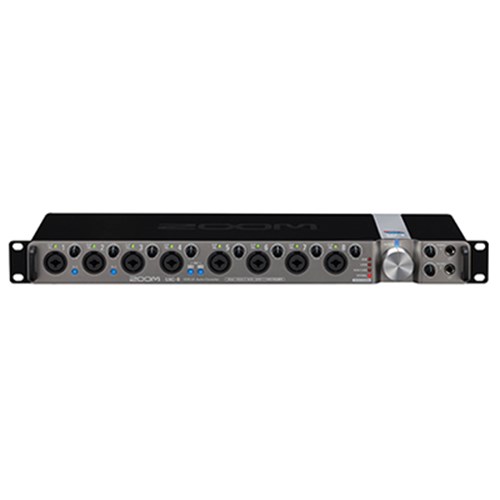

Zoom UAC-8 USB 3.0 Audio Converter

The Zoom UAC-8 is an 18x20 USB 3.0 audio interface that offers up to 24-bit/192 kHz resolution and near-zero latency. The rugged housing makes it suitable for field and studio recording of instruments and microphones as well as for onstage audio and playback streaming. It comes equipped with MIDI output and input connectors, so you can use it as a stable MIDI interface. The Zoom UAC-8 comes with 10 balanced 1/4-inch outputs and 8 TRS/XLR combo inputs with mic preamps. Additionally, a phantom power switch allows the use of condenser mics. This unit also provides a full complement of digital I/O, such as word clock, ADAT, and S/PDIF. Moreover, inputs 2 and 1 provide a Hi-Z instrument input for bass and guitars. The two headphone outputs feature volume controls for added convenience. It includes a free Mac app that allows you to mix parameters and add effects like echo and reverb.

Zoom UAC-8 USB 3.0 Audio Converter Key Features:

• 18-in, 20-out USB 3.0 audio interface with both digital and analogue outputs/inputs
• Robust metal housing for excellent durability and strength
• Record and playback eight tracks simultaneously with low latency
• Support for up to 24-bit/192 kHz high‐definition audio
• Eight combo balanced TRS/XLR analogue input connectors
• Features Hi-Z switches for direct connection of bass or electric guitar
• High‐performance mic pre-amps with up to +60dB of amplification
• Comes equipped with clip LEDs and independent gain controls for each input
• Features ten balanced TRS output jacks for connecting self-powered speakers
• Comes with dual front-panel ¼-inch headphone outputs with volume controls
• 4x up-sampling during D/A & A/D conversion for enhanced fidelity and reduced noise

Expanded Zoom UAC-8 USB 3.0 Audio Converter Key Features:

Upsampling, Standalone Mode

The Zoom UAC-8 utilises high-end components including the AKM AK4413 digital-to-analogue converter and the AKM AK5388 analogue-to-digital converter. It performs 4x upsampling during both digital-to-analogue and analogue-to-digital conversion. In other words, when the sampling frequency is set to 48 kHz or 44.1 kHz, the Zoom UAC-8 processes the signal at a high resolution of 192 kHz or 176.4 kHz. For D/A conversion, this means increased clarity and fidelity; for A/D conversion, this means less aliasing noise. In standalone mode, you can use the Zoom UAC-8 as an eight-channel microphone pre-amp and digital-to-analogue or analogue-to-digital converter without connecting to your PC.

Extend Your Capabilities with Software

UAC-8 MixEfx is a free Windows and Mac compatible app developed specially by Zoom for the UAC-8. It offers a comprehensive onscreen mixer, with independent level, panning control, and phase reversal for each channel. This powerful software also lets you freely route all inputs to all outputs and create custom mixes. Additionally, this software features effects including echo and reverb to enhance the audio quality.

Professional Editing with Every Interface

The Zoom UAC-8 comes with a free download license for Steinberg’s Cubase LE music production software. This not only allows you to capture excellent low-latency and high-resolution audio in every box, but also allows you to do several more amazing things with it. It surely takes your recordings to a more professional level.

What's in the box?

• 1 x Zoom UAC-8 USB 3.0 Audio Interface
• 1 x Power Adapter
• 1 x USB 3.0 Cable (1m)
• 1 x Steinberg Cubase LE Software Authorization Code
• 1 x Cubase LE startup guide
• 1 x Operation Manual
• 1 x Limited 1-Year Warranty

FAQs:

Does the Zoom UAC-8 allow multi-channel monitoring?

The Zoom UAC-8 USB 3.0 Audio Interface features dual balanced analogue TRS output jacks for connecting monitors. It also comes with eight discrete balanced TRS analogue line outputs for connecting external effects devices or multichannel monitoring.

How many Inputs does the Zoom UAC-8 come with?

The Zoom UAC-8 USB 3.0 Audio Interface offers a variety of both digital and analogue connectors. Eight front-panel combo TRS/XLR inputs accept line- and mic-level signals. It also features a Phantom Power switch that enables the use of condenser mics. Moreover, it also comes with input gain controls and Clip LEDs, which allows you to set optimum input levels.

Does the Zoom UAC-8 USB allow interfacing with electronic keyboards?

The Zoom UAC-8 USB 3.0 Audio Interface features MIDI In and Out to allow interfacing with devices including electronic keyboards and drum machines.
