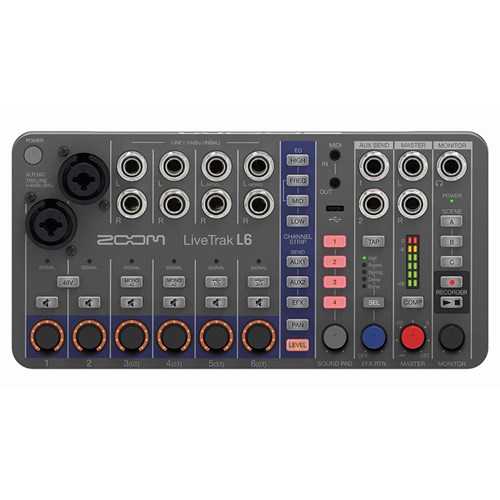

Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder

The Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder is a compact and portable option for bands, synth players, live streaming, and more. It features 10 discreet tracks of clip-free 32-bit float audio, effects, MIDI, and sound pads with various inputs and outputs for maximum versatility. You can connect, program, and sync the L6 to external MIDI gear via the 3.5mm MIDI I/O or a PC via USB.

Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder Key Features:

• Versatile 10-channel ultra-compact digital mixer/recorder
• Equipped with full channel strip controls for each track
• Records 10 discreet tracks plus a full stereo mix to an SD card up to 1TB
• Share the live mix or transfer multi-track audio files to DAW for editing and mixing
• 32-bit float technology and clear-sounding preamps for clip-free audio
• 4 AA batteries power the mixer/recorder for up to 3 hours
• Features a range of inputs and outputs for recording/mixing
• Includes effects such as Delay, Echo, Spring, Room, and Hall reverbs
• Advanced compressor increases loudness and adds natural saturation
• Connect, program, and sync to other gear via 3.5mm MIDI I/O or USB
• Can be used as a 32-bit float 10-in/4-out USB audio interface
• Connect to computers, iOS, or Android devices while recording to an SD card
• Connects to streaming software on PC, Mac, and iOS devices
• LED control knobs for quick and precise adjustment of levels and more
• 4 sound pads can be used to trigger pre-recorded backing tracks/samples
• Use L6 Editor Software to tailor settings and programming
• Mixes can be saved to one of 3 scene memories for instant recall
• Mountable to standard Eurorack case with optional accessories

What’s in the box?

• 1 x Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder
• 1 x AD-17 USB AC Adapter
• 1 x USB-C Cable

FAQs:

What strip controls does the Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder have?

The Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder features full channel strip controls for each track. These include 3-band mid-sweepable EQ, aux sends, pan, and effects.

What inputs and outputs are available on the Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder?

The Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder has many inputs, including two XLR/TRS combo inputs with +48V phantom power plus 4-stereo ¼” inputs, two additional mono inputs instead of a stereo input, and a USB Audio Return for backing tracks and other audio from a laptop. It has AUX outputs for sending custom mixes to monitors, effects, or external devices, outputs for connecting to studio monitors or live speakers, and a headphone output with volume control.

What does the L6 Editor Software do?

With the L6 Editor Software, you can access settings and MIDI programming. You can customise effect parameters, AUX send points, sound pad settings, and more to ensure they’re suited to your recording requirements.

How do you power the Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder?

The Zoom L-6 LiveTrack - 10 Track Digital Mixer / Recorder can be powered via four AA batteries for up to 3 hours or a USB power bank, or mains power for extended use.
