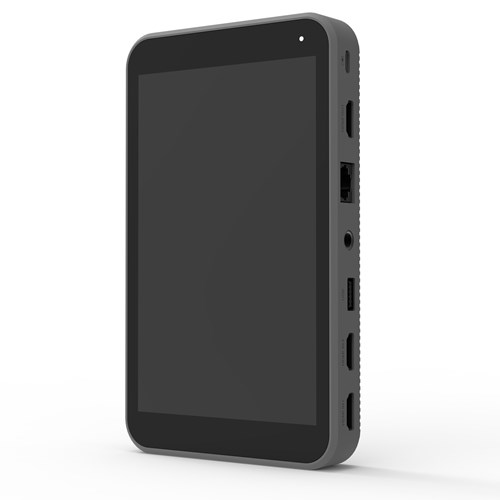

YoloLiv Instream

Join the vertical video revolution with the YoloLiv Instream, an all-in-one live-streaming multicam set-up with a 7-inch display. The Instream acts as a streamer, encoder, switcher, recorder, and monitor compatible with up to 3 external cameras when using apps such as TikTok or Instagram. Create content with built-in features such as timers, graphics overlay, chroma key, and picture-in-picture.

YoloLiv Instream Key Features:

• All-in-one live-streaming vertical multicam studio set-up
• Streamer, encoder, switcher, recorder, and monitor with a 7-inch display
• Ideal for creators, influencers, storytellers, and videographers
• Stream at up to 1080p60 quality using the H.264 codec
• Features built-in: countdown timers, PiP, graphics, lower-thirds, chroma key
• Create content for social media with graphic overlays and picture-in-picture
• Compatible with Instagram, TikTok, etc. for enhanced live-streaming
• Transport your subjects to exciting and varied scenes using chroma key
• Includes multiple capture sources: 2 HDMI In + 1 USB In + SD Card
• Runs on Android OS, so no computer or OBS is required
• Three ways to connect to the internet: Wi-Fi, 4G LTE, or Ethernet cable
• Total touchscreen control allows you to operate like a smartphone
• Internal Battery lasts for 3+ hours, so there’s no need for a break in streaming
• Two 1/4“ thread mounts on either side of the device for ease of set-up
• Compact size and weight of only 600g for easy transportation

Expanded YoloLiv Instream Key Features:

High-Quality Live Streaming

The YoloLiv Instream is a vertical livestream encoder and monitor that seamlessly integrates with Instagram and TikTok, enabling you to utilise external cameras for streaming - an option unavailable when using the Instagram app on your smartphone. With the Instream, you can effortlessly select and switch between three external cameras while directly employing the Instagram app.

Beyond its multi-camera streaming capabilities, the Instream offers features like graphic overlays, picture-in-picture, chroma key, and transition effects when transitioning between camera inputs. Achieve a streaming quality of up to 1080p60 using the efficient H.264 codec, and conveniently record your content to an optional SD card.

The device boasts a user-friendly 7" LCD touchscreen display, two HDMI inputs, one USB-A input, and an HDMI output for localised viewing of your stream via other devices and monitors. Furthermore, the Instream prioritises audio quality, featuring a line-level audio input, mic input, and a headphone jack for direct audio monitoring.

What’s in the box?

• 1 x YoloLiv All-in-One Instream
• 2 x USB-C Cable
• 1 x Shoe Mount
• 1 x SIM Card Pin
• 1 x Screen Protector
• 1 x Allen Key

FAQs:

How do I connect the YoloLiv Instream to the internet?

The YoloLive Instream can connect to the internet via WiFi, Ethernet cable, or a 4G sim card. This range of options makes the Instream an excellent choice for live streaming from various locations that may otherwise be inaccessible.

What are the dimensions of the YoloLiv Instream?

The YoloLiv Instream is lightweight and compact, measuring 112.5mm (W) x 25mm (H) x 188mm (L) with a rugged body weighing just 600g for ease of transportation.

What ports does the YoloLiv Instream have, and what are their functions?

The YoloLiv Instream houses several various input and output ports for greater connectivity options:

• USB-C: For charging
• 2 x HDMI IN: Video input
• 2 x 1/4" Thread Mounts: Mount with compatible devices
• USB-A: Video input for USB webcams
• ETHERNET PORT: Connect to the internet by Ethernet cable
• HDMI OUT: Connection to monitor or computer for Zoom/Skype meetings
• AUDIO OUT: Connect with 3.5mm monitor headphones
• LINE IN: Stereo - connect to electric guitar or synthesiser
• MIC IN: Mono - connect to microphone for recording
• SD Card Slot: Used for recording and loading graphics
• SIM Card Slot: Insert SIM card to connect to the internet via 4G
