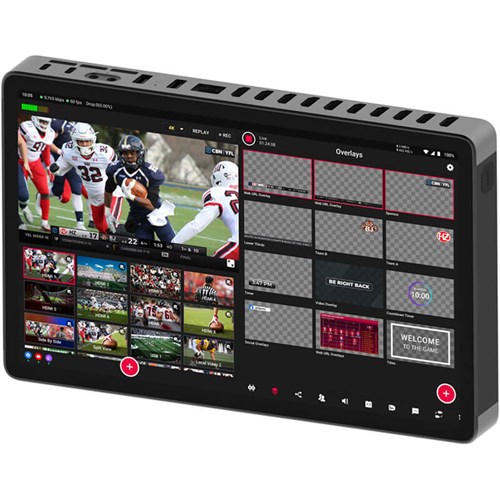

YoloBox Extreme

Power your live production with the YoloBox Extreme, a feature-packed encoder, switcher, recorder, and monitor in a single device. Its Qualcomm 8 Gen 2 processor ensures seamless operation, while the 11.2-inch 2.5K OLED touchscreen delivers ultra-smooth 120Hz responsiveness. With 8 HDMI inputs, 4K streaming, ISO recording, and multi-camera replay, this all-in-one solution is built for high-end live broadcasting without the need for a computer.

Key Features:

• 8 HDMI inputs for up to 4K60 sources with built-in scaler
• Real 4K streaming with assignable HDMI program / multiview outputs
• ISO recording - up to 4 × 4K30 or 6 × 1080p60 video feeds
• MultiCam instant replay - 4 × 4K30 or 6 × 1080p60 angles
• 8 NDI inputs - connect wirelessly or via Ethernet for next-level flexibility
• 11.2-inch OLED touchscreen - 2.5K resolution, 120Hz refresh rate
• 10-hour battery life with built-in 4G LTE, WiFi, and Ethernet
• External antenna for up to 90m wireless range and stability
• Fully interactive touchscreen control with real-time monitoring and switching
• Android-based system with regular updates and app compatibility
• Customise split-screen, picture-in-picture, and multiview overlays
• Built-in chroma key seamlessly adds virtual backgrounds
• Advanced audio mixing - independent mix-minus, delay, and level controls
• Predefine auto-switching camera changes for hands-free production

Expanded Features

Stream in true 4K with advanced switching

Deliver professional-grade live streams with real 4K streaming and support for RTMP, RTMPS, SRT, and NDI protocols. The YoloBox Extreme features 8 HDMI inputs, accommodating up to 4 × 4K60 sources with a built-in scaler, plus two HDMI outputs for assignable program or multiview feeds in 4K resolution. With up to 8 NDI inputs, you can integrate wireless cameras for seamless, cable-free production.

Enhance live production with multi-cam instant replay

Rewind key moments in real time with multi-cam instant replay, supporting 6 × 1080p60 or 4 × 4K30 feeds. Whether covering sports, interviews, or live events, replay footage with pre-set durations, transitions, and effects. Combine this with custom multiview layouts, picture-in-picture effects, and chroma keying to elevate your production. The built-in ISO recording ensures each input is saved separately for post-production flexibility.

Broadcast from anywhere with built-in 4G and long battery life

Go live without a computer or external encoders, thanks to built-in 4G LTE, WiFi 6, and Ethernet connectivity. Insert a nano-SIM card for network redundancy, ensuring a stable stream even in remote locations. The 10,000mAh battery provides up to 10 hours of operation, while an external antenna extends the wireless range up to 90m for uninterrupted broadcasting.

What's in the box?

• 1 × YoloBox Extreme
• 2 x USB Charge Cable
• 1 x Hotshoe Mount
• 2 x Antenna
• 1 x User Manual
• 1 x SIM Card Eject Pin
• 1 x Hex key

FAQs

Does the YoloBox Extreme support ISO recording?

Yes, the YoloBox Extreme records individual video inputs along with the program feed, allowing for post-production editing. You can capture up to 4 × 4K30 or 6 x 1080p60 feeds separately.

Can I use NDI sources with the YoloBox Extreme?

Yes, it supports up to 8 NDI inputs, allowing you to wirelessly connect cameras and other devices via Ethernet for a flexible multi-camera setup.

How long does the battery last?

The built-in 10,000mAh battery provides up to 10 hours of continuous use, making it ideal for on-location productions without external power.

Is the YoloBox Extreme compatible with external audio mixers?

Yes, it features stereo line-in and mic-in (3.5mm) inputs, plus USB audio support. The built-in mixer also allows for individual level control, mix-minus, and delay adjustments.

Can I livestream without a computer?

Yes, the YoloBox Extreme is a self-contained unit with a built-in encoder, switcher, and monitor. Simply connect cameras, select your layout, and go live—all without additional hardware.

What are the ports and inputs shown on the YoloLiv YoloBox Extreme?

This is a list of the ports on the YoloBox Extreme:

• HDMI Inputs (1-8): Up to 4*4K60 with Built-in Scaler
• HDMI Outputs (1-2): Assignable Program/Multiview Out in 4K
• Ethernet Connection: Wired Stable internet connection
• USB Type-A 3.0 (1-2): For Webcams; Hard drives; USB dongles
• Mic In (3.5mm): Mono, connect to wired microphone
• Line In (3.5mm): Stereo, connect to external audio mixer
• USB Type-C: A fully functional interface supports input
• USB Type-C: Only for Charging
• Audio Out (3.5mm): Connect to headphones for monitoring
• SD Card Holder: Save files; Load videos & graphics.
• Nano-SIM Card Holder: Insert SIM card for 4G network
• 1/4'' Screw Hole: Mount with other cameras & tripods
• Power Button: Turn on & off, Sleep Mode
