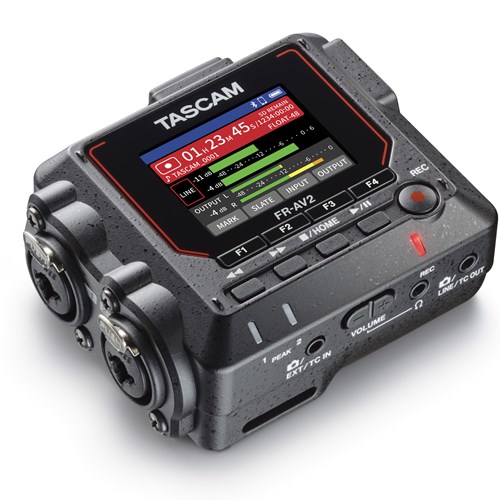

Tascam FR-AV2 Field Recorder

The Tascam FR-AV2 is a compact and feature-packed audio recorder for film makers that combines state-of-the-art 32-bit floating point technology with timecode generation and synchronisation. This not only ensures a significantly enhanced sound experience – it also simplifies the entire process from recording to editing.

Tascam FR-AV2 Field Recorder Key Features:

• Professional 2-channel audio recorder with dual AD converters, sampling rates up to 192 kHz, resolution up to 32-bit float
• Receives and sends timecode (LTC) for synchronisation with a video camera, simplifies post-production (Tentacle-ready)
• Wireless timecode synchronisation possible with Atomos products*
• Bluetooth audio monitoring possible with optional Tascam AK-BT2
• Tascam Recorder Connect app allows integrated management of multiple FR-AV2 and DR-10L Pro* units
• Two XLR/TRS microphone/line combo inputs (48 V or 24 V phantom power)
• Ultra-compact user interface with 2-inch (5-cm) colour LCD

Synchronise the recorder with industry-standard video equipment without the need for an external timecode device. And use the optional AK-BT2 Bluetooth adapter for wireless monitoring.

No-Clip Recordings

With the FR-AV2’s advanced 32-bit float recording at up to 192 kHz, you’ll never have to scrap a recording because of distorted or weak audio levels. When recording at lower bit depths, such as 24-bit and 16-bit, loud sound sources can cause digital clipping that cannot be fixed later.

Dual analogue-to-digital converter technology captures recordings with greater dynamic range and clarity – so you can increase the level of dialogue without distracting changes in tone or dynamics.

Premium XLR/TRS Combo Inputs

Connect microphones and professional line-level sources directly to the FR-AV2’s dual Ultra HDDA preamps. With an equivalent input noise of just –127 dBu, you can capture audio with maximum clarity and virtually noise-free.

In addition, the 3.5-mm stereo input allows you to use wireless microphones, lavalier mics and any other audio sources you may have in your arsenal.

Ultimate Timecode Generation

With the FR-AV2, you’ll be able to streamline your videography rig and take less gear to shoots. The recorder sends and receives timecode via its 3.5-mm input/output for DSLR cameras, and also supports jam-sync for any external timecode devices.

Using the optional AK-BT2 Bluetooth adapter, you can also wirelessly sync timecode with supported Atomos UltraSync Blue devices.

Wireless Audio Monitoring

Adding the optional AK-BT2 Bluetooth adapter allows you to monitor audio wirelessly on the fly. Select one of three quality levels to ensure you get the best possible signal depending on the recording environment, including connection quality and sound quality.

Wired and Bluetooth monitoring work in parallel so that two people can listen at the same time.

iPhone Filmmaker, Meet Your Professional Audio Interface

Whether you’re always on the go or creating content spontaneously, the FR-AV2 fits easily into your iPhone video rig using a USB-C cable. This allows you to use professional-grade XLR inputs for superior sound quality, as well as output timecode and synchronise it with your smartphone.

With timecode input/output and your phone, the FR-AV2 turns your mobile videos into professional productions.

Simple and Comprehensive Field Recorder

The FR-AV2 is one of the most comprehensive audio recorders for videography on the market. It lets you focus on your video shoot, not your audio gear.

With the ultra-compact recorder mounted to your camera, you get dual professional audio inputs, 32-bit float recording, onboard timecode generation and synchronisation, and wireless audio monitoring capability – all in a single rugged package.

High-Precision Sync in Demanding Environments

The FR-AV2 is equipped with a highly accurate temperature-compensated crystal oscillator (TCXO), designed to deliver ultra-precise and consistent synchronisation performance even in high-temperature environments.

Advanced Input Processing

Fine-tune your audio before capture with onboard low-cut filter, compressor, limiter, and noise gate.

High-Capacity Audio Recording

Even with 32-bit recording, the FR-AV2 has the capacity you need for long video shoots. With support for SDXC recording media up to 512 gigabytes, you’ll spend less time swapping cards and more time creating content.

Always keep track with the colour LC display

The 5-cm (2-inch) colour LCD ensures optimal visibility and operability when managing your shoot.

AK-BT2 Bluetooth Adapter

The optional Bluetooth adapter is the ideal solution for wireless timecode, syncing multiple FR-AV2 units, monitoring audio wirelessly or even syncing multiple FR-AV2 and DR-10L Pro units simultaneously with the Tascam Recorder Connect app.

Remote control via app

The free Tascam Recorder Connect app for iOS, iPad OS and Android lets you control multiple FR-AV2 and DR-10L Pro units from your portable device (requires the AK-BT2 Bluetooth adapter, sold separately).

32-bit Float Audio Interface

The FR-AV2 can be used as a USB audio interface for Mac/Windows/iOS devices, with two inputs and two outputs supporting 32-bit float resolution.

Additional Features:

• Ultra low-noise Tascam Ultra HDDA microphone preamplifiers
• High-precision clock generator (TCXO – Temperature Compensated Chrystal Oscillator)
• Additional mini-jack input for audio from camera, wireless microphone receiver or plug-in powered microphones (2.5 V or 5 V)
• Mini-jack output with adjustable attenuation allows audio to be sent to cameras and other devices
• Switchable low-cut filter, compressor, limiter and noise gate for the inputs
• Adjustable input delay to compensate for distance between microphones (0–300 ms)
• Adjustable output delay to compensate for time lag between camera video and audio output (0–300 ms)
• Various mark and auto-slate tone functions
• Metadata can be recorded (BEXT and iXML for WAV files)
• Automatic file closing function to prevent the loss of already recorded data
• 3.5-mm stereo headphones jack
• Built-in 2×2 USB audio interface, supports 32-bit float resolution
• Long-term recording with 3 AA batteries
• Power can also be supplied via USB-C port
• Supports microSD/microSDHC/microSDXC recording media up to 512 Gigabytes
• Compact, lightweight and robust fiberglass enclosure designed for use with camera rigs

What’s in the box?

• 1 x Tascam FR-AV2 Field Recorder
• 1 x Safety Guide
• 1 x Tascam ID Registration Guide
