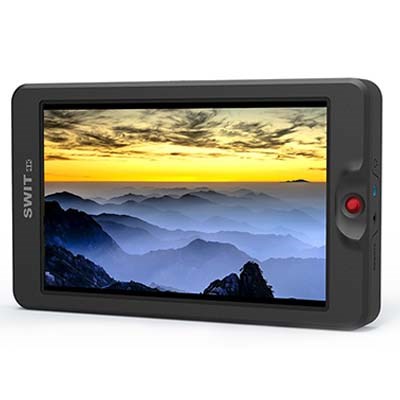

Swit CM-S75C 7 Inch High Bright Monitor

The Swit CM-S75C 7 Inch High Bright Monitor offers a 7-inch Full HD daylight-viewable panel with IPS LCD, 1920x1200 FHD, and max 3000nit brightness. It allows you to monitor images with clarity whatever the working conditions. You can monitor the image in HDR with the 3000nit HDR display and a contrast ratio of 1200:1 via the Hybrid Log Gamma (HLG) HDR standards or PQ.

Swit CM-S75C 7 Inch High Bright Monitor Key Features:

• Features a 7-inch IPS LCD, 1920x1200 FHD and 3000nit brightness
• Offers a display area of 151.2x94.5mm with 16.77-million colours
• Aspect ratio of 16:9 (4:3 adjustable)
• Capable of 2x 4x Quick zoom-in and Pan
• For convenient operability peaking focus assist and precision adjust are available
• Facilitates PQ/HLG HDR monitoring
• Supports HDMI 1.4 (4K30p) input and loop out
• 3.5mm SDI, HDMI embedded audio output
• Employs one joystick operation
• Users benefit from built-in and user custom 3DLUTs
• Includes Waveform/Vector/Histogram
• 160-deg horizontal and vertical viewing angle
• Power on/off NP-F Batteries
• Input Voltage: 5.5/2.1mm Pole-tap DC 11-17V input and NP-F battery 6-8.4V input
• The monitor can work in temperatures of -10 to +50-deg Celsius and humidity of 10% to 90%
• The monitor should be stored in temperatures of -15 to +60-deg Celsius and humidity of 10% to 90%

Expanded Swit CM-S75C 7 Inch High Bright Monitor Key Features:

User Customisable UI

User customisable UI allows you to create customisable pre-sets suited to any shooting requirement. You are able to create up to 8 scenes. These can retain up to 8 different functions and tool shortcuts each. You can easily toggle them on and off with a touch of a button.

Upload Custom 3DLUT's

You are able of uploading your own custom Look Up Tables (LUT's) directly into the monitor through the SD card slot. This allows you to monitor the log image as it will appear after the colour grading process.
