Sky-Watcher 90 Degree Polar Scope Eyepiece

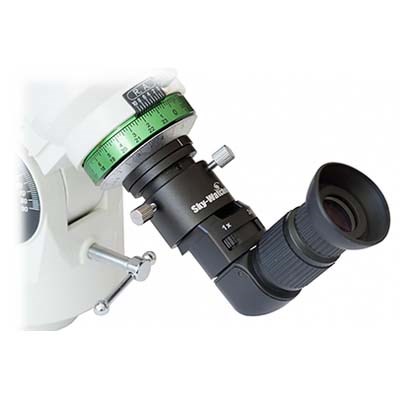

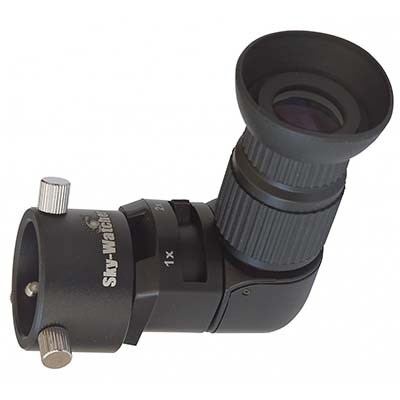

Sky-Watcher 90-degree Polar Scope Eyepiece is an easy-to-use and comfortable eyepiece that makes polar aligning your mount a lot easier. It comes with an eyepiece sleeve that clamps securely over the polar scope eyepiece with an internal diameter of 30.1 mm. Its ability to rotate 360 degrees around its axis and to be able to switch between magnifications makes it easy for optimum positioning.

Sky-Watcher 90-Degree Polar Scope Eyepiece Key Features:

What's in the box?

FAQs:

What is the diameter of the eyepiece sleeve?

The Sky-Watcher 90-degree polar scope eyepiece comes with an eyepiece clamping sleeve having an internal diameter of 30.1 mm.

Which devices is this eyepiece compatible with?

The eyepiece is compatible with mounts that have a polar scope eyepiece of up to 30 mm diameter. It is also suitable for fitting to the polar scopes of Sky-Watcher AZ-EQ5, EQ5, EQ3, HEQ5, AZ-EQ6, EQ6-R, GGEM mounts.

Which are the available zoom adjustments?

The 90-degree eyepiece can rotate 360 degrees around its axis and can be switched between the available magnifications of 1x and 2x. The rotation comes equipped with click-stops which helps in increased and precise positioning.

Does this come with an eyesight adjustment?

For added comfort during Polar Alignment, the eyepiece has a fitted soft rubber eyecup and an eyesight adjustment of + to – 4 diopters which can be adjusted according to your eyesight.

How can the eyepiece sleeve be used?

The eyepiece sleeve easily clamps over the polar scope eyepiece using a three metal-screw system with non-marring plastic tips. This efficient clamping method provides easy and optimum positioning of the eyepiece.
