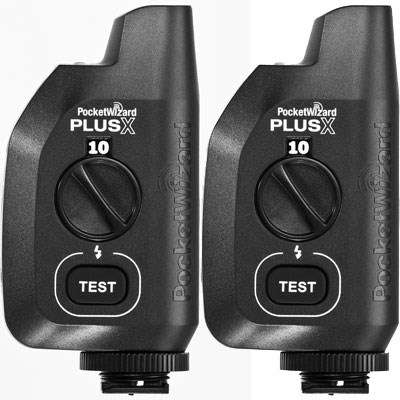

PocketWizard PlusX Transceiver Twin Kit

The PocketWizard PlusX Transceiver is the simplest PocketWizard radio ever and the perfect entry into the PocketWizard Wireless System. Whether you are new to off-camera flash or an experienced pro looking to expand upon an existing PocketWizard system the PlusX is the perfect choice. Simply attach one PlusX to your camera, another PlusX to a remote flash using an included cable, set both radios to the same channel and start taking pictures. The PlusX is compatible with all Standard Channel-capable PocketWizard transmitters and receivers, so it's the perfect companion for your existing radios and new flashes. This kit contains two PlusX Transceivers.

Features of the PocketWizard PlusX Transceiver Twin Kit

10 Standard Channels
With the PlusX's 10 Standard Channels you can work in your own "zone." Claim your own channel for exclusive triggering when working with other photographers at crowded events. Use different channels for different setups or looks and select them simply and intuitively with the turn of a dial. And these 10 channels are compatible with every PocketWizard ever made* set to Standard Channels 1 - 10. (* radios of the same frequency).

Backlit Channel Dial
Setting channels is as easy as turning a dial. The backlit channel dial clearly displays the set channel and because the backlight consumes so little power, it stays on all the time for convenience.

Internal Antenna
The PlusX features a durable, side profile design with an unobtrusive, internal antenna minimizing visual obstruction between you and your subject. By utilizing an internal antenna, there's no chance to kink or break it when on location. The total height of the transceiver and antenna is less than 4.2 inches, and it weighs only 4 ounces, including batteries.

Easily Connected / Cable Port
On your camera, the PlusX slides into the hot shoe with no cables required. For your remotes, it features one do-it-all miniphone (3.5mm or 1/8") sync port. The miniphone connector is much more reliable than a PC connection and every PlusX comes complete with a miniphone-to-miniphone cable, a miniphone-to-phono (1/4" or 6.3mm) adapter for triggering the majority of modern flashes, and a miniphone to locking PC cable for triggering some remote speedlights or for using your PlusX on-camera when you can't put it in a hot shoe. Other miniphone connector cables are available for major brands of lighting equipment in a variety of lengths. Dedicated remote camera triggering cables are also available for popular camera systems.

Auto-Sensing Transceiver
With our patented Auto-Sensing Transceiver Technology, the PlusX Transceiver is one smart radio. The PlusX will instantly and intelligently switch between transmitter and receiver modes keeping setup as simple as possible. The PlusX may be set to Transmit (Tx) only when needed.

Auto-Relay Mode
Our Auto-Sensing Transceiver Technology lets you trigger a remote camera in sync with remote flashes using only 3 PocketWizard radios: the one in your hands, a PlusX cabled to your remote camera, and the one connected to your remote flash. The PlusX cabled to your remote camera will receive a radio signal and trigger the camera's motor drive, then switch to transmit mode and trigger your PocketWizard-connected remote flashes on the next channel up, all automatically. Start the sequence by simply pressing the TEST button of any PocketWizard transmitter in your hands. Remote cameras require motor drive cables. Find the correct cable for your gear using the PocketWizard Cable Finder.

Status Indicator/Battery Life Indicator
The PlusX features a tri-color LED status indicator that serves two functions. When the PlusX sends or receives a triggering signal, the LED will glow red. During normal operation, the indicator will blink a single green blink meaning it is operating normally and the battery life is above 50%. It will blink a double amber blink when the battery is below 50% but above 25% and it will blink three red blinks when the battery life is below 25% and it's crucial to replace the batteries.

Transmit Only Mode
There are times when you only want your radio to transmit, usually when two or more photographers are sharing a set of lights. By enabling transmit only mode, you disable the receive and auto-relay functions to make sure all your radio is doing is transmitting.

Range and Reliability
PocketWizard Plus radios are known for their range and reliability. Although the PlusX costs less than other PocketWizard radios, you still get the range and reliability you'd expect.

Sync Speed
Ultra-fast microprocessors allow for reliable sync speeds of 1/250 for focal plane shutters and 1/500 for leaf shutters.

PocketWizard Compatible
The PlusX is compatible with all PocketWizard transmitters and receivers including PocketWizard-enabled photo gear from Profoto, Dynalite, Norman, Photogenic and Sekonic light meters. The PocketWizard Wireless System allows for total flexibility with whatever lights or cameras you may be working with.

Frequency:
FCC/IC: 344.04 MHz
CE: 433.62 MHz

Channels:
10 channels
Reverse compatible with all PocketWizard radios using Standard channels using same frequency.

Zones:
Single zone

Antenna:
Precision tuned internal coil

Channel Setting:
Backlit rotating dial

Range:
Up to 500 meters (1600 feet)
(Actual range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference)

Sync Speed:
Up to 1/250 for focal plane shutters
Up to 1/500 for leaf shutters

Triggering Speed:
Up to 14.5 frames per second (FPS)

Contact Time:
62 milliseconds in normal operation

Status Indicator:
LED: Green, Amber, Red status indications
Solid Red: Triggering signal sending or receiving
Single Green Blink: Status OK, > 50% battery life
Double Amber Blink: Battery life < 50% but > 25%
Triple Red Blink: Battery life < 25%, change batteries

Transmit Output Power:
Less than 1 milliwatt (0.001 watt)

Power:
Two (2), AA (LR6), 1.5v alkaline recommended
NiMH, NiCAD, NiZn, Lithium acceptable (these chemistries may not report battery life accurately)
DO NOT USE 3.6V Li-Ion AA cells!

Battery Life:
Up to 100 hours (with alkaline batteries)

Max Port Sync Voltage:
300 Volts (Camera/Flash Port)

Mac Current Handling:
1.0 A peak, 0.2 A (1/5 Amp or 200 milliamp) continuous current limited

Voltage Present:
3 volts, safe for use with all digital and film cameras

USB:
None

Housing:
High impact plastic with captive battery door

Weight:
3.9 ounces (110 grams) with batteries installed

Dimensions:
Height: 4.2 inches (10.7 cm)
Width: 2.1 inches (5.3 cm)
Depth: 1.2 inches (3.0 cm)

Operating Temperature:
Above 5° F (-15° C) and below 120° F (50° C).

Storage Temperature:
Above -22° F (-30° C) and below 185° F (85° C) (without battery)

Input/Output:
3.5mm (1/8") stereo miniphone jack, hot shoe

Mounting:
Hot shoe, lanyard/D-Ring loop, 1/4-20 threaded insert

In the Box:
Quick Guide
Stereo 3.mm (1/8") miniphone to miniphone cable
Mono 3.5mm miniphone to locking PC cable
Stereo 3.5mm miniphone to 6.3mm (1/4") adapter
Lanyard

RoHS Compliant:
Yes

Optional Accessories:
Isolation bar, trigger buttons, camera motor drive cables, PC cables and adapters, flash sync cables and protective case
