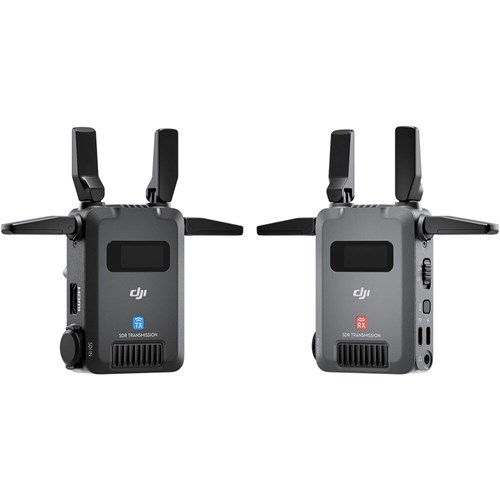

DJI SDR Transmission Combo
The DJI SDR Transmission Combo offers everything needed for stable, high-quality video transmission. This combo includes an SDR transmitter for your camera and a receiver for an optional monitor or tablet. It uses SDR technology to send footage up to 1080p60 over DFS, 2.4 GHz, and 5.8 GHz frequencies. Automatic frequency hopping ensures high penetration, reaching long distances up to 1.9 miles. More
Finance options available
Learn moreThe DJI SDR Transmission Combo offers everything needed for stable, high-quality video transmission. This combo includes an SDR transmitter for your camera and a receiver for an optional monitor or tablet. It uses SDR technology to send footage up to 1080p60 over DFS, 2.4 GHz, and 5.8 GHz frequencies. Automatic frequency hopping ensures high penetration, reaching long distances up to 1.9 miles.
DJI SDR Transmission Combo Key Features:
- Includes both transmitter and receiver for seamless video transmission
- Utilises advanced SDR technology for robust and flexible signal transmission
- Operates on multiple frequencies with automatic hopping to avoid interference
- Supports high-definition video transmission up to 1080p at 60 frames per second
- Capable of transmitting signals over long distances up to 1.9 miles
- Offers versatile modes for both video broadcast and camera control
- Fully compatible with DJI Ronin gimbals for integrated operation
- Provides multiple connection options, including HDMI, SDI, and USB-C
- Transmits video at 20 Mb/s for superior image quality
- Ensures minimal delay with a latency as low as 35 milliseconds
How to Use the DJI SDR Transmission Combo
Broadcast Mode
In this mode, you can add an unlimited number of additional SDR receivers to your system. It also supports rapid switching between multiple camera indexes and offers Wi-Fi support for one or two flexible monitoring alternatives as needed.
Control Mode
This mode supports stabiliser control (virtual joystick, gimbal recentering, etc.) and camera control (PTP control and Sony camera virtual menu).
Additional Extras
Additional features include a built-in status display, transmission of footage and metadata, DJI Ronin compatibility, 35ms low latency, a high bit rate of up to 20 Mb/s, and outputs for HDMI, SDI, and USB-C.
What’s in the box?
- 1 x DJI SDR Transmission Transmitter
- 1 x DJI SDR Transmission Receiver
- 1 x Transmitter Gimbal Mounting Adapter Plate
- 1 x Transmitter Camera Mounting Adapter Place
- 1 x USB-A to USB-C Cable (16.9")
Product Specification
| Audio Formats | Audio: 1x 1/8" / 3.5 mm Output |
| Connections | SDI Input Port HDMI Input Port 3.5mm Stereo Jack USB-C Firmware Update Port USB-C Power and Gimbal Communication Port |
| Dimensions | Devices: 86.5×64×32 mm (L×W×H, excluding antennas) |
| Input | Output | Transmitter: 1x HDMI (Unspecified Signal) Input,1x BNC (Unspecified SDI) Input, 1x USB-C (Unspecified Signal) Input Receiver: 1x HDMI (Unspecified Signal) Output, 1x BNC (Unspecified SDI) Output, 1x USB-C (Unspecified Signal) Output |
| Mounting | Camera + Gimbal Mounting Adapter Plates |
| Operational Modes | Video Format HDMI/SDI/USB 1080p: 60 |
| Power Input | NP-F Battery Power Supply Voltage: 6.8-8.4 V |
| Supported Video | HDMI/SDI/USB 1080p: 60 |
| Transmission | DFS, 2.4 & 5.8 GHz with Auto Hopping |
| Weight | Transmitter + Receiver (145g + 145g) - 290g |
