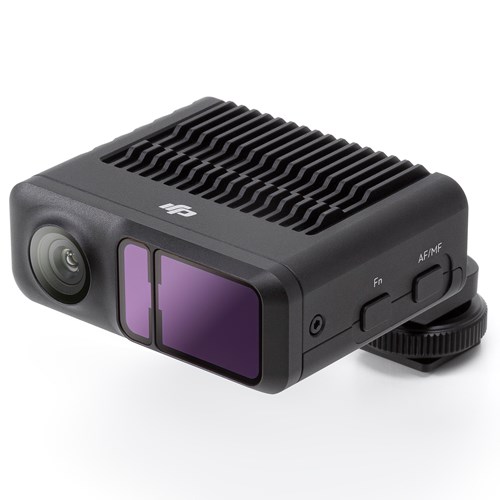

DJI LiDAR Range Finder for RS

Pair your DJI LiDAR Range Finder with your RS 3 Pro to benefit from next-generation tracking capabilities that provide the most accurate and responsive performance to date. This Range Finder boasts a built-in camera and projects 43,200 ranging points within a 14-meter distance to maintain an exceptionally stable performance even in low-light conditions and complicated scenes with multiple subjects.

DJI LiDAR Range Finder for RS Key Features:

• Pairs with the DJI RS 3 Pro for ActiveTrack Pro support
• Self-developed chip improves the power of ActiveTrack Pro
• Projects 43,200 ranging points within a 14-meter distance
• Features a built-in camera with a wide 70° field of view
• Exceptionally stable focus even in low-light conditions
• Automatic and manual focus with Wide Mode and Spot Mode
• Improved subject identification and tracking performance
• Pairs with the DJI Focus Motor (2022) for autofocus options
• Live feed latency of just 40 ms, 60% lower than predecessor
• Can also operate independently without RS 3 Pro Gimbal

Expanded DJI LiDAR Range Finder for RS Key Features:

Pro-Grade Focusing

The LiDAR Range Finder from DJI is designed for use with your RS 3 Pro gimbal to make focusing far easier. This accessory has the ability to project 43,200 ranging points within a 14-meter distance and a built-in 30mm equivalent camera boasting a wide 70° FOV. These features make the LiDAR Range Finder a comprehensive solution that caters to the focusing needs of most productions.

Focusing Flexibility

Unlike conventional focusing technology, this system from DJI does not rely solely on the surface texture of the subject. As a result, the LiDAR Range Finder is able to maintain an exceptionally stable performance even in low-light conditions and complicated scenes including multiple subjects. It also supports both Wide Mode and Spot Mode, so users can choose between In automatic subject detections and manual framing.

ActiveTrack Pro

With the LiDAR Range Finder, tracking on the R series gimbals has never been more accurate or responsive. The self-developed chip used is identical to the one belonging to the Ronin 4D, boosting the computing power of ActiveTrack Pro by more than 60 times compared to ActiveTrack 3.0 on the Ronin Image Transmitter.

This next-generation ActiveTrack system directly reads images from the built-in camera without the need for the Ronin Image Transmitter. As a result, users can monitor or frame the subject on the RS 3 Pro’s OLED touchscreen, with a live feed latency of just 40 ms, so you don’t miss any fast-moving subjects. And, with a neural network accelerator, the LiDAR Range Finder can identify and track multiple targets, even at a distance.

What’s in the box?

• 1 x LiDAR Range Finder (RS)
• 1 x Multi-Camera Control Cable (USB-C, 30 cm)
• 1 x LiDAR Control Cable (USB-C, 30 cm)

FAQs:

How do you achieve cinematic autofocus with a manual lens?

Pairing the LiDAR Range Finder with the optional Focus Motor (2022) further expands the capabilities of the RS 3 Pro. When working with manual lenses, this combination makes it possible to use cinematic autofocus. Once calibrated, several lens calibration profiles can be stored in the focus motor, so there is no need to continuously re-calibrate.

How does this Range Finder identify subjects?

The LiDAR Range Finder identifies subjects through machine learning. This device can recognise up to 5 targets at the same time and allows you to choose which to follow. The maximum distance for identifying subjects with this device is 9m.

What size is this Range Finder?

The LiDAR Range Finder benefits from a compact design, measuring only 66mm in length and 57mm in width. It is also a lightweight device, weighing only 130g. This is an incredibly easy accessory to store and transport from shoot to shoot.
