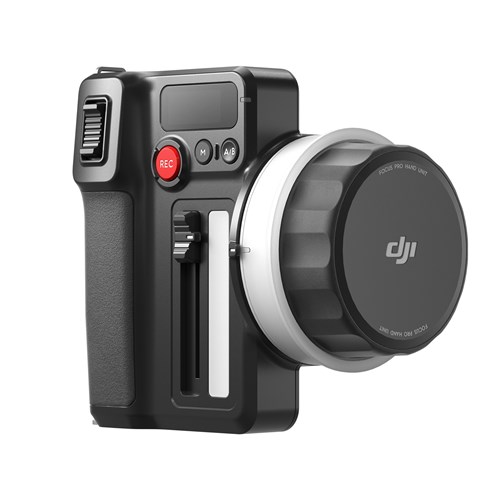

DJI Focus Pro Hand Unit

The DJI Focus Pro Hand Unit enables wireless control over focus, zoom, and aperture functions. With a large focus knob, zoom rocker, and iris slider, achieving precise shots is effortless. It covers up to 160m communication distance, offers stepless real-time damping adjustments, and integrates seamlessly with other Focus Pro devices for DJI's first Automated Manual Focus (AMF) lens control system.

DJI Focus Pro Hand Unit Key Features:

• DJI Focus Pro Hand Unit for effortless control over lens focus, zoom, and aperture
• Enhances teamwork efficiency for complex scene set-ups
• Features stepless real-time damping adjustments for balanced precision and focus control
• Uses an electronic A-B point marking mode with spring-back tactile feedback
• 160m communication distance, suitable for most indoor and outdoor shooting needs
• Bluetooth start/stop recording capability for wireless control with mirrorless cameras
• Pairs with other Focus Pro devices as part of DJI's first independent AMF lens control system
• Supports one-button linking with the DJI Focus Pro Motor for quick start-up
• Includes a D-TAP to USB-C Power Cable (50cm) and a set of focus marking rings

What’s in the box?

• 1 x Focus Pro Hand Unit
• 1 x D-TAP to USB-C Power Cable (50cm)
• 1 x Set of replaceable Focus Marking Rings
• Documents

FAQs:

What is the function of the trigger on the back of the DJI Focus Pro Hand Unit?

By holding down the trigger, the damping of the handheld unit can be quickly adjusted. When using the DJI Focus Pro LiDAR as a focus aid, the trigger can be used to focus on the subject.

What is the high-frequency band (HF band) of the DJI Focus Pro Hand Unit? Is it affected by HF devices such as video transmission systems?

The DJI Focus Pro Hand Unit operates in the 2.4 GHz HF band, and there is a possibility that other 2.4 GHz devices may cause interference. If you are using it with the DJI High-Bright Remote Monitor, make sure that the monitor's HF band is set to 5.8 GHz/DFS to minimise the risk of interference.

Why does the DJI Focus Pro Hand Unit return to a specific position after the damping setting is completed?

When you hold down the trigger to adjust the damping, the handheld unit automatically saves the last set focus position. After completing the setting, the handheld device automatically returns to this saved focus position.
