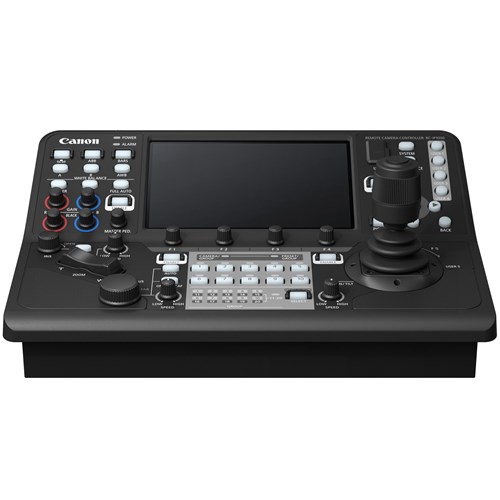

Canon RC-IP1000 PTZ Controller

Operate and monitor up to 200 cameras via IP using the Canon RC-IP1000 PTZ Controller. It has multiple connectivity options for professional broadcasting settings, a 7-inch touch screen, various customisable buttons, and an ergonomically designed joystick for precise manual control. No PC is required for setup, and it has advanced pre-set and trace control functions to support efficient workflows.

Canon RC-IP1000 PTZ Controller Key Features:

• Easily operate and monitor up to 200 cameras via IP
• No PC is required for initial setup of cameras or the controller
• High-quality ergonomically designed joystick with zoom rocker
• 42 buttons and 14 dials control Iris, Gamma, Knee, and white balance
• Customisable button enables greater versatility of control
• Monitor and control Canon camera feeds with a 7-inch touchscreen
• Set focus points and settings for touch AF, Face, and Eye detection
• Compatible with external monitors via 12G-SDI or HDMI port
• Camera search function makes for easy setup without a PC
• Can change settings of up to 200 connected cameras
• Compatible with selected cinema EOS ranges and XF605 Pro Camcorder
• Group all cameras together or up to 10 in one group
• Compatible with presets for controlling multiple PTZ cameras
• Offers multiple connection options for professional use
• Register and manage presets and traces by naming them

What’s in the box?

• 1 x Canon RC-IP1000 PTZ Controller

FAQs:

What inputs and outputs does the Canon RC-IP1000 PTZ Controller have?

The Canon RC-IP1000 PTZ features one DC 12V XLR port, five Serial RJ45 ports, LAN/POE+, USB (for future expansion), HDMI Out, 12G-SDI in/out, and two GPIO D-SUB 25pin channels, offering versatile connection options for professional use.

Can the Canon RC-IP1000 PTZ Controller be used with an external monitor?

While the RC-IP1000 has a 7-inch touch screen for monitoring and operating your camera, it can be used with an external monitor via the 12G-SDI or HDMI ports.

How can you set up PTZ cameras on the Canon RC-IP1000 PTZ Controller without a PC?

The RC-IP1000 has a search function for finding and registering new cameras via the LAN. It can change the system settings of up to 200 connected cameras and perform its initial setup without a PC.
