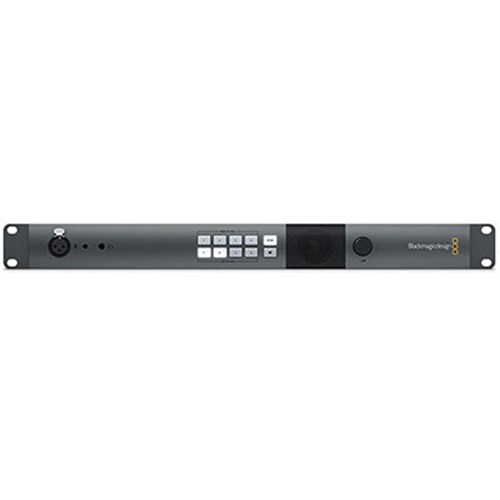

Blackmagic ATEM Studio Converter 2

Convert SDI signals received over optical fibre for use with video switchers with the Blackmagic ATEM Studio Converter 2. Optical fibre signals can travel much further than SDI without quality degradation, and when combined with the ATEM Camera Converter, users can send a video signal up to 28 miles, as opposed to the normal range of 300 feet when using copper cables.

Key Features: Blackmagic ATEM Studio Converter 2

• Connect to 4 cameras at a time: The ATEM Studio Converter 2 allows users to connect to up to 4 cameras at any given time, and can be cascaded together when further functionality is required
• Precise signal processing: The Talkback Converter 4K's new chipset allows for 10-bit processing, while 8 independent SDI to Optical and Optical to SDI converts can be used in conjunction with the ATEM Camera Convert, for 4 more SDI or Fibre to HDMI converters

Specifications:

• Standards:
  • HD Format Support SDI: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080PsF 30/29.97/25/24/223.98, 1080i 60/59.94/50/, 720p 60/59.94/50
  • SD Format Support: NTSC: 525i 59.94, PAL: 625i 50
• Video:
  • SDI Video Input:4 x 10 bit SD/HD switchable camera inputs, 1 x 10 bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal
  • SDI Compliance: SMPTE 259M, SMPTE 292M
  • Video Sampling: 4:2:2
  • Colour Precision: 10-bit
  • Colour Space: REC 601, REC 709
  • Optical Fibre Video Input: 4 x single mode SD/HD switchable camera inputs with LC connector
  • Optical Fibre:
    • Input: 4 x single mode LC connectors for video with embedded audio, Channels 1 & 2 are camera audio, Channels 15 & 16 are talkback audio
    • Output: 4 x single mode LC connectors for video with embedded audio, Channels 1 & 2 are camera audio, Channels 15 & 16 are talkback audio
• Audio:
  • Audio Sampling: 48 KHz, 24-bit A/D conversion
  • Analogue Audio Output: 4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input), 2 x RCA jacks provide a L/R stereo pair
  • Talkback: 1 x 1/4" TRS headphone jack, 1 x .206" TRS mic input for use with aviation style headset, 1 x 3-pin XLR connector for talkback microphone, 1 x integrated speaker
  • Talkback Control: 8 x Front panel buttons for camera operator selection, lock, mute and un-mute
  • AES/EBU Talkback Loops:
    • Input: 1 x BNC mic input, 1 x BNC headphone input
    • Output: 1 x BNC mic output, 1 x BNC headphone output
• General:
  • Operating systems: OS X 10.7 Lion and later, OS X 10.8 Mountain Lion and later, Windows 7, Windows 8
  • Computer Interface: 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control
  • Power Requirements: 110 - 220V AC, 50/60 Hz, 12 - 31 V DC redundant input Note: IEC power cord is required/not included, redundant power supply not included
  • Dimensions: 44 x 482mm, 1RU size with built-in rack mount ears
  • Weight: 1.81 kg
