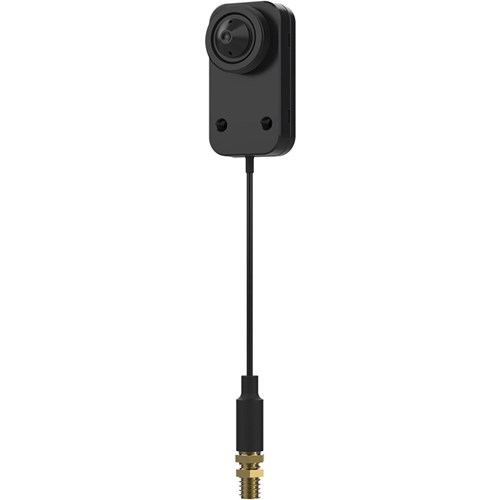

Axis F7225-RE Pinhole

The Axis F7225-RE Pinhole Sensor is an efficient and reliable device for surveillance in tight spaces. It provides high-resolution videos (1080p at 60 fps) even in low-light conditions. The sensor works with the Axis F91 main unit and can be connected via up to 30 m cable. Its 97° field of view provides maximum coverage. This pinhole sensor has an IR cut filter for switching between day and night.

Axis F7225-RE Pinhole Sensor Key Features:

• Designed for discreet surveillance in restricted spaces such as an ATM
• Compatible with the Axis modular F91 main unit (not included)
• Requires a cable for secure connectivity (sold separately)
• 3.7 mm lens provides a horizontal video with a 97° field of view
• Supports up to four 1080p videos at 30 fps (or 720p at up to 60 fps)
• Wide dynamic range is suitable for forensic video capturing
• Includes an SMA connector
• Built-in IR cut filter for easy switching during day and night observations
• IP66 and IP67 rated for use in indoor and outdoor locations
• Operates effectively between -40 °C and 55 °C
• Includes a straight mounting bracket for installation
• Includes a straight mounting bracket for installation

What's in the box?

• 1 x Axis F7225-RE Pinhole Sensor
• 1 x Axis F8202 Straight Mounting Bracket
• Limited 5-Year Warranty

FAQs:

What is the benefit of this Axis F7225-RE sensor?

The compact sensor is suitable for covert surveillance and use in tight spaces where traditional cameras cannot fit.

What is the resolution provided by this Axis pinhole sensor?

The sensor provides 1080p resolution at 30 fps and 720p resolution at 60 fps.

Is this Axis F7225-RE pinhole sensor waterproof?

The Axis F7225-RE pinhole has IP66 and IP67 ratings making it water-resistant up to a certain limit.

What are the optimum temperature conditions to use this pinhole sensor?

The ideal operating temperature ranges between -40 °C and 55 °C.

Does it come with a mounting bracket?

The Axis sensor is accompanied by the F8202 mounting bracket for installation.
