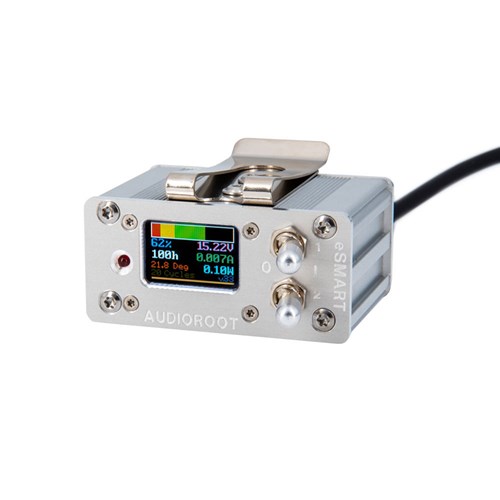

Audioroot BG-DH MKII eSmart Universal Power Distributor w/ Status & Fuel Gauge

The Audioroot eSMART BG-DH MKII is an ultra-small, DC power distribution box with 1 unfused SMbus pass thru output, 3 fused outputs, 2 non-fused auxiliary outputs and a colorful fuel gauge designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The BG-DH MKII has a smart DC input cable and six DC outs all on rugged Hirose locking connectors. The first 4 outputs are protected with a 2.5 amp re-settable fuse.

Audioroot BG-DH MKII eSmart Universal Power Distributor w/ Status & Fuel Gauge Key Features:

• Real-time monitoring of the battery’s SOC: remaining capacity (%), run time estimation, battery voltage, power consumption, power and coulomb counter
• 6 power outputs switchable (4/2) via locking switches
• 1 unfused Hirose output with SMBus pass thru
• Polyswitch 2.5A resettable fuses on 3 outputs
• A blinking LED indicates when the battery capacity falls below 10 %
• Plugs directly on all Audioroot smart batteries
• Hirose locking connectors
• Sunlight readable 96 x 64 pixels OLED color screen with 180° viewing angle
• 1 belt clip
• Very low power consumption: the eSMARTG BG-DH MKII does not affect the battery’s autonomy

What's in the box?

• 1 x Audioroot BG-DH MKII eSmart Universal Power Distributor w/ Status & Fuel Gauge
