Atomos Shogun 7
We no longer sell this product and will not be receiving any new stock. Check below for availability of second-hand units.
| Condition | Availability |
|---|---|
| New | Discontinued - we can no longer source new stock of this product |
| Loading Alternatives | |
| View all used versions of the Atomos Shogun 7 currently available » | |

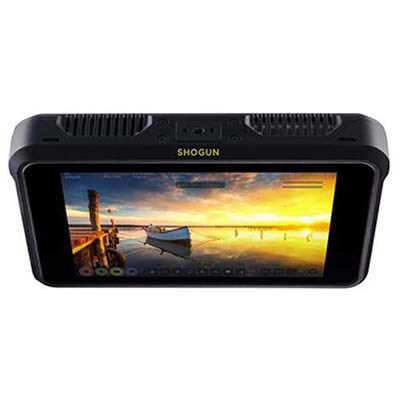

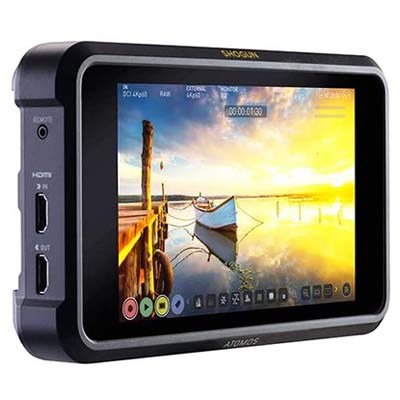

Atomos Shogun 7 is a 7-inch HDR monitor-recorder-switcher designed for the film and video professional. It features a 1500nit daylight-viewable, 1920x1200 resolution screen that can display 15+ stops of real dynamic range. The Shogun 7 can be used as either a stand-alone field monitor, recorder and switcher for event, documentary and live in-the-field storytelling; or as a tool for large-scale on-set episodic TV, film and cinema productions where multiple crew members such as focus pullers, grips and cinematographers require a consistent visual reference across the field monitor ecosystem.
Key Features: Atomos Shogun 7
- 1500nit HDR Display incorporating 360-zone technology with 1,000,000:1 contrast ratio, 15+ stops of dynamic range and 105% DCI-P3 Wide Colour Gamut
- Real-time recording to 4K formats including ProRes RAW, CinemaDNG, ProRes and DNx
- New Dolby Vision HDR Output in real-time, direct from camera sources
- New Dynamic AtomHDR Backlight advanced image processing system
- Portable Multi-Cam HD Recording supporting 4x ISO feeds over SDI up to 1080 60p with live asynchronous switching
- AtomOS 10 touch-screen interface first seen on the award-winning Ninja V
Atomos Shogun 7 features a new 7" industrial design in-line with the Ninja V and supports two NP-F batteries, DC input and records to removable 2.5" SSD media.
Introducing Shogun 7
Product Specification
| Brightness | 1500nit |
| Connections | 1 x HDMI (2.0), 4 x 3G-SDI, 2x 12G single link SDI |
| Contrast Ratio | 1,000,000:1 |
| Dimensions | 214 x 127 x 45mm |
| LUT Support | 3D LUT |
| Power Options | NP-F series |
| Resolution | 1920 x 1080 |
| Screen Size | 7.2” |
| Storage Media | 2.5” SSD/HDD |
| Weight | 709g |
