Atomos Ninja V Pro Kit
Product Code: 1767498

Atomos Ninja V Pro Kit

We no longer sell this product and will not be receiving any new stock. Check below for availability of second-hand units.

Condition Availability
New Discontinued - we can no longer source new stock of this product
Loading Alternatives
View all used versions of the Atomos Ninja V Pro Kit currently available »
Back to top

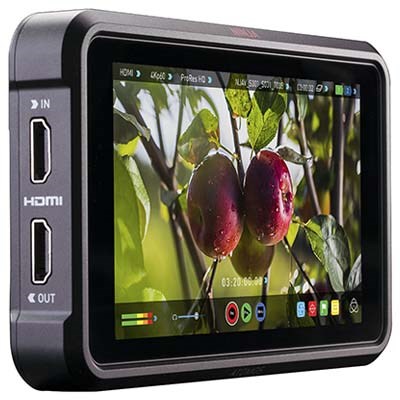

The Atomos Ninja V has been designed to be the ultimate HDMI Monitor/Recorder unit, and this Pro Kit will further enhance your workflow. The unit features beautiful clear 5" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, which offers uninterrupted viewing in any lighting condition. This screen also records and plays back up to DCI 4K and stores data to purpose-built mini-SSDs. It can also record Apple ProRes Raw up to DCI 4K60 directly from the sensor of select cameras. The Pro Kit includes additional accessories, as well as an update that enables RAW over SDI and a free firmware update which enables HDMI/SDI conversion.

Atomos Ninja V Pro Kit Key Features:

  • The ultimate video monitor/recorder
  • Super-clear 1920 x 1080 Touchscreen Display
  • 10-Bit Exterior Viewable Monitor
  • Record up to 6K RAW via HDMI and SDI
  • Offers 4K HDMI 2.0 Input/Output
  • Supports ProRes Raw with Select Cameras
  • Maximum 1000 cd/m² Brightness
  • Provides AtomHDR Mode with 10-Stop Dynamic Range
  • 10-Bit 4:2:2 ProRes & DNxHR Encoding
  • Will record to 2.5" Mini or Standard SSDs
  • Supports a range of log formats
  • Connect to your DTap power source with the lockingDTap cable and battery eliminator

Atomos Ninja V Pro Kit Key Features:

The Pro Kit

The Pro Kit that Atomos has put together for the Ninja Vsees additional accessories and new functionality to further enhance your video production workflow. This includes enabling RAW over SDI when using an AtomX SDI module, as well new firmware which enables HDMI-SDI cross conversion when using an SDI module. This will also support RAW to Video conversion, too! These updates are pre-actived on the Ninja V that comes in the Pro kit.

This update and licence which enables RAW over SDI will be separately sold for Ninja V users directly from the Atomos website. Whilst the firmware update which enables HDMI/SDI conversion will be free and downloadable via the standard firmware update procedure.

Designed for Professionals

The Ninja V is the ultimate field monitor. It's designed to enhance on-the-go film and video creators who require the capture of high-quality, industry-standard codecs like ProRes and ProRes RAW. It offers a huge range of professional qualities including Apple ProRes Avid DNx, 12Gb/s HDMI 2.0 I/O connectivity, comfortable viewing of HDp240 Slow Motion HD footage.

In addition, you can benefit from 6.9sec Pre-roll, a 150 minute recording time on ITB, a TC timecode and the ability to trigger from the camera itself. Again, this unit is all about providing an enhanced and more efficient workflow whilst you're filming your scene.

4K 60p Capabilities & SSD Recording

An invaluable feature of the Ninja V is the ability to record DCI or UHD 4K at rates up to 60 fps, including 24 and 25 fps, which provides a more filmlike aesthetic. These recordings are all stored as super-high-quality Apple ProResor Avid DNxHR files with 10-bit 4:2:2 chroma subsampling.

When it comes to what your data will be stored on, you can record to standard 2.5" SSD drives or to compact AtomX SSDmini drives which offer up to 2TB storage. It's advisable to use SSDmini drives as they can offer super-fast read and write speeds (550 MB/s read & 500 MB/s write), providing you with the capture of up to 150min of 4K video on a 1TB drive.

A Bright Display

The Ninja V monitor is equipped with a 5" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight. This design makes it possible to view your footage without the need for a sun hood which would provide shade in bright conditions. The screen is also colour-calibrated in-factory which ensures an accurate image representation whilst viewing/monitoring footage.

As well as this, the 1920 x 1080 display offers 10+ stops of dynamic range of your camera's log image with AtomHDR. There are 10-bit colour processing and user calibration, and the monitor will even support custom LUTs to best suit your film and workflow.

Audio

Audio-wise, the Ninja V offers both input/output audio via HDMI or add external audio via the 3.5mm Line In/Mic In port. Output audio can be monitored via a convenient 3.5mm headphone port.

HDR Monitoring (Gamut)

  • ARRI ALEXA Wide Gamut (mapping to Rec709/BT.2020/DCI-P3 on loop-out)
  • BT.2020
  • Canon Cinema
  • DCI-P3, DCI-P3+
  • Panasonic V-Gamut
  • Rec.709
  • RED DRAGONcolor, DRAGONcolor2
  • REDcolor2, REDcolor3, REDcolor4
  • REDWideGamut
  • Sony S-Gamut, S-Gamut3, S-Gamut3.Cine

HDR Recording (Gamut):

  • ARRI Log CEI160, CEI200, CEI250, CEI320
  • ARRI LogCEI400, CEI500, CEI640, CEI800
  • ARRI LogCEI1000, CEI1280, CEI1600
  • Canon C-Log, C-Log 2, C-Log3
  • FUJIFILM F-Log
  • HLG
  • JVC J-Log1
  • Nikon N-Log PQ10K
  • Panasonic V-Log
  • RED LogFilm, RG310, RG312
  • Sony SLog2, SLog3

HDR Monitoring (Gamma):

  • ARRI ALEXA Wide Gamut
  • BT.2020
  • Canon Cinema, DCI P3, DCI P3+, BT2020
  • JVC LS300
  • Nikon N-Log PQ10K
  • Panasonic V-Gamut
  • Rec.709
  • RED DRAGONcolor, DRAGONcolor2
  • REDcolor2, REDcolor3, REDcolor4
  • REDWideGamut
  • Sony S-Gamut, S-Gamut3, S-Gamut3.Cine
  • Sony SLog2, SLog3

Supported Log Formats:

  • ARRI Log C
  • Canon C-Log, C-Log 2
  • FUJIFILM F-Log
  • JVC J-Log
  • Nikon N-Log
  • Panasonic V-Log
  • RED LogFilm
  • Sony SLog2, SLog3

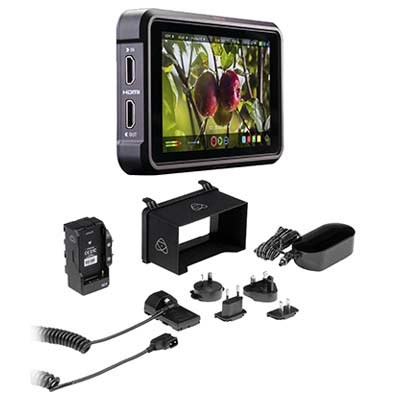

What's in the box?

  • 1 x Atomos Ninja V

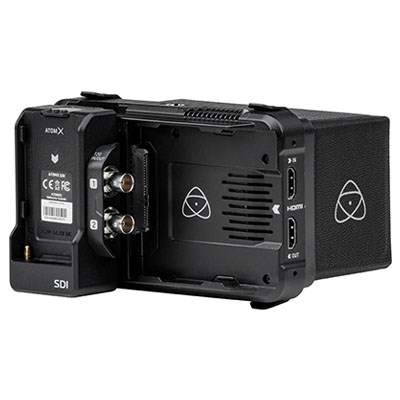

  • 1 x Atomos AtomX SDI Expansion
  • 1 x Atomos AtomX Battery Eliminator
  • 1 x Atomos AC/DC Power Supply
  • 1 x Atomos AtomX 5" Sun Hood
  • 1 x Atomos Master Caddy II
  • 1 x Atomos Connect

Atomos Ninja V Pro Kit Video:

Atomos Ninja V External 4K Recorder | Latest Firmware Update | Hands-On Review

FAQs:

What cameras are compatible with this monitor?

The Atomos Ninja V is compatible with almost any HDMI or SDI source which includes Pro cameras, for example, ARRI, Canon, FUJIFILM, Nikon, Panasonic, RED, Olympus, Sony, and Z-CAM.

Will the Ninja V support Anamorphic De-Squeeze?

Yes! The Ninja V supports Anamorphic de-squeeze, enabling you to accurately view anamorphic footage with 2x, 1.5x, 1.33x, or Panasonic 8:3 ratios on-the-fly.

Can you select your own markers?

By all means. The Ninja V offers a wide range of frame lines including standard versions plus 1:1, 4:5, 1:91:1, and 9:16 options.

Can you record to an SD card?

No, you cannot record to an SD Card. You can only record to approved SSD or SSD mini drives.

Can I get the firmware and new license upgrade if I already own the Ninja V?

Yes! The update and licence which enables RAW over SDI will be separately sold for Ninja V users directly from the Atomos website. Whilst the firmware update which enables HDMI/SDI conversion will be free and downloadable via the standard firmware update procedure.

  Back to top

Product Specification

Connections Input: 1 x HDMI (2.0), output: 1 x HDMI (2.0), SDI Expansion
Dimensions 151 x 91.5 x 31mm
LUT Support 3D LUT (.cube format)
Power Consumption 10 - 19W
Resolution 1920 x 1200
Screen Size 5 inch
Storage Media 2.5” SSD/HDD
Weight Without batteries & media 320g / 11.28oz
